h/p/ cosmos Biomechanics – gaitway 3D

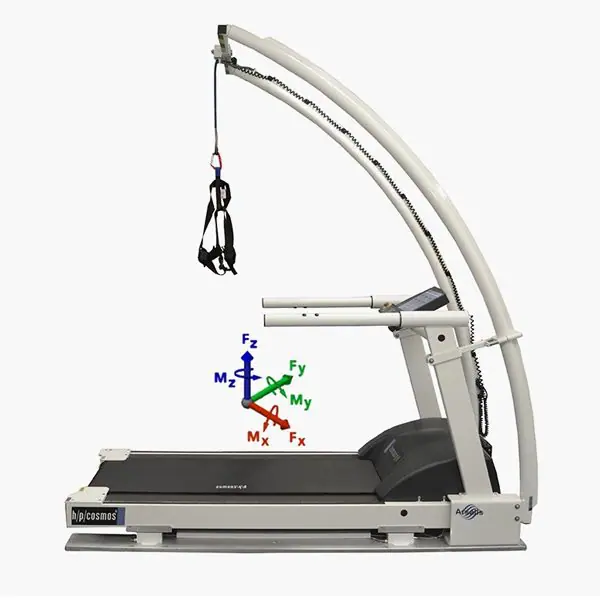

Novi 3D gaitway je zajednički dizajn h / p / cosmos i Arsalis. Mjeri snagu i okretne momente na zemlji u tri smjera i dolazi u tri različite veličine: svaka veličina je optimizirana za niz brzina.

3D gaitway nudi čvrstu konstrukciju za snimanje optimalnih signala kvalitete. Funkcionalnosti uključuju skalu vaganja pacijenata, snimanje snaga reakcije na zemlji pri brzinama do 10 kHz, mjerenje sile lijevo i desno za vertikalnu silu tijekom hodanja i opsežan popis biomehaničkih parametara normalnih i patoloških kretanja.

Ovaj proizvod nema definiranu cijenu.
Molimo pošaljite upit

Functionalities & Biomechanical parameters

  • Online feedback to user (e.g. for training facilities)
  • Data recording & analysis (e.g. for research facilities)
  • Patient evaluation (e.g. for clinical research facilities)

Biomechanical parameters

  • Step length, width, frequency
  • Swing / stance durations
  • Contact / aerial durations
  • Stride asymmetry
  • Force peaks (push-off, landing)
  • Force vector orientation
  • Loading and unloading rate
  • Left / Right foot for vertical force
  • More biomechanical parameters

Measured and computed signals

  • 3D Force (Fz, Fy, Fx)
  • Center of Pressure (Opx, Opy)
  • Moments (Mx, My)
  • Frictional Torque (Tz)
  • Belt speed

System performance Features

  • Extremely wide measuring range
  • Excellent measuring accuracy
  • Built-in amplifier with acquisition system
  • LAN connection
  • Control & acquisition software included
  • Start and stop trigger inputs and digital trigger output for integration with EMG and motion analysis systems
  • Raw data accessible via interface
  • Cost-effective
  • Also available in economic 1 component ground reaction force Fz version incl. 25% inclination (h/p/cosmos treadmill gaitway III)
